Sunday, September 27, 2015

Archery Tournament Trophy (A Day of Archery, 2015)

I decided to try working on my painting skills. I grabbed a tiny brush meant for painting minis, and built a small wooden bridge to rest my hand. I got to work:

 It's hard to tell how the lines are doing while tracing, at least for me. Once I removed the original image I was very, VERY pleased with the line work. It has a somewhat irregular, rustic feel but I was ok with that.

Matting, to remove highlights

Matting cleaned up

I'm particularly pleased with this leg. The knee was a great accident.

After silver staining. I also wanted to stain the rock at the archer's feet, for some kind of vertical balance, but I tried three times and it blended "away" from the line too much. I moved on without it.

The finished and framed piece, at the archery field.

Thursday, August 13, 2015

Pattern Shears

Going to try something new at my Laurel's suggestion to see if it makes me happier with my cutting accuracy. A lot of the super-precise artisans I've met online seem to use pattern shears, and she suggested it for me.

I hopped over to my local supplier and got a pair. The owner, an awesome woman, had me find them in a box under a cabinet because she hasn't had demand for them in years. The shears give a seriously big gap (and I triple checked they were foil, not lead not mosaic). For a few bucks I grabbed them anyway, but kept researching. I found shears that kept saying they removed 1/32" for foil. The pair I got locally can not be 1/32". I ordered a pair (made by Mika Intl, via Amazon, but this is not a plug). They DEFINITELY remove less pattern:

"Squeeze-bottle grip" foil scissors, left, Mika Intl shears, right.

I'm working on cutting up a pattern right now, planning on starting to cut it tonight. Lots of curves and difficult cuts, it should be a great test if this method works better for me than working "English" (glass on pattern on lightbox).

Monday, August 10, 2015

Estelle's Vigil: Scarab Platter

EDIT: I've had to do something stupid to get the text to appear on this post. Sorry!

Estelle has, as one of her personal badges, a scarab (dung beetle) pushing a ball of it's preferred element. It's a reference to her peerage theory, quoted here:

The Dung Beetle Theory of becoming a Peer:

First, you gotta find your shit.

Roll around in that shit a while, make sure it's the shit you want to bring home.

Then, you get your shit together.

You gather it up, make it nice and rounded, polish that shit up so that it shines.

Then, you gotta bring your shit home.

So you spend your time, rolling that shit along.  But because you're a dung beetle, you gotta roll it backwards, which means that you really have no clue where you're really headed... but eventually, after a long while, and with a little luck, you get that shit right where it needs to be.

And that's how you become a Peer.

The End.

She requested a scarab platter on which she can serve truffles during her vigil. She provided a design:

We went through available molds and glass colors to find something acceptable:

(There is an invisible piece of clear for the white in this picture. The glass looks slightly hazy -- to me it's as if someone spilled milk on it and wiped most of it off. It was sold as "cloud" and as a translucent white. It wasn't translucent as I would find out...)

I was a bit concerned about how to fire this one. Before I started this piece I had fired one half of the family badge plate (adjacent post). I think it's issues were closely tied to the irregular layering of the glass (2 layers in some places, 1 layer in others). I added more clear pieces to this blank (what I call the piece as it's being fused, before slumping) to try and keep more consistency.

The piece is not perfectly regular, which didn't surprise me. A little grinding fixed that up. There are some unfortunate lines between the body segments, and leg segments. I knew that would happen but I didn't want to overlap the pieces and potentially provoke bubbles. This picture shows how the white striked. I compared it to a piece of "opaque" fusible white, and the piece sold as opaque was actually more translucent than this cloud glass.

With these platters I progressively slid my firing schedule down from 1300 degrees. I think its near 1230 now, with no change in the hold times. I did that to try and avert "dog boning" especially in the square plates. This helpful advice came from the folks at Fused Glass Fanatics on Facebook.

These pictures show the completed (slumped) platter. The actual shape and depth is not conveyed well, I will try to take a better shot next week. The white is clearly NOT translucent. I used my grinder along the edges to make the shape a little more regular and remove some stabby-bits.

Sunday, August 9, 2015

Estelle's vigil: Family Badge Platter

Estelle did not ask for this, but some time ago we discussed the idea of making a matched set of platters that, when joined, would form her family badged (used by her whole mundane household). I decided this was as good a time as any!

The plates feature blue bars on a clear (white) field, with green in the corners (skipping heraldry terminology for non-heralds). Because I use a base layer of clear, I didn't see the need to fill in the second layer with clear. This is the first time I've tried any fused project with clear. I expected that the blue might spread or contract a bit, but I thought it would be acceptable:

HUGE bubble. Right beneath the base layer, not between two. The edge was also very irregular. ALSO, the grey sharpie used to tag the glass didn't burn off as I had expected. So, scrapped it and started over.

This time, I added clear layers in the top. The results fused much more smoothly:

And the slumping went well. Initially the shape bothered me, I thought I was seeing the "dogboning" problem I've had in the past with this mold, and I had been correcting my slumping temperature down to try and adjust. After a couple of days I realized they are fine; the molds have a slight curve in a plane I didn't realize, and the shape is closer to the mold's shape than I thought.

The piece in the top of these pictures had some old kiln wash fuse to the glass. For the immediate purposes, this is fine, but I plan to remake it so it has the clarity of the second (bottom) tray.

Lessons Learned:

  • Applied kiln wash apparently has a shelf-life!
  • Better results with even layer coverage.

Saturday, August 8, 2015

Laurel Scroll of Dame Estelle de la Mer

Long, long ago a dear friend said "If I ever get elevated, I want you to do my scroll." It was a tremendous honor, considering she is one of the best scroll makers alive. Suddenly a few months ago Baronessa Estelle de la Mer was put on vigil and it took two days for the panic-screams to abate.

For the design, Estelle said she wanted something fairly simple, her device and a laurel wreath. No calligraphy (she wanted to make it painless on the scribe). She found a wreath she particularly liked (the border in the below picture) and I started working on understanding the shading of the pieces:

For the border I chose a green glass that looks like healthy vegetation. I think of it as a "living green"

I ran into one snag at this point. The pattern I had cobbled together had a somewhat indistinct cutline, and I tried to make it work. I do this too often, and I know it's a terrible idea. I then spent hours trying to grind all five pieces into complacency, and the results were terrible. The gaps were large, irregular. As minor as it seems, I was pleased that I eventually realized the right course was to transfer a clear cutline to new paper and scrap the first five. I was unhappy at having to scrap a square foot of clear, but I would have been infinitely unhappier to give my friend crap work for her elevation to the Laurel. The above picture is the recut pieces.

For the center roundel featuring her device, I could only come up with a few ways to do it. The first and obvious way is just piecing it together. Because her device has a complex line of division (a chief engrailed) and a charge over a line of division (a mullet of nine points) I thought the lead lines would be too much. Discussing it with Molly here at Pennsic, she suggests that it would have been fine, and that the mind would ignore the lead lines altogether (particularly if they were not straight "industrial" lines, a tip she received from my Laurel). I'm going to sketch out a few ideas for paint-less designs and see how I feel about them.

Another alternative (suggested by Kirsten, my laurel) would have been to use flashed glass for one of the two colors, and enamel in the other one. With the terrible lesson I got about this green enamel (See below), I would definitely use green flashed glass and put in the blue with enamel if I had to recreate this piece today.

My past experience with Reusche enamels has been hit or miss. The first time I used the sapphire blue enamel the results were amazing. I've previously done Estelle's albatross badge with it, and they worked flawlessly. The greens I've tried (two different ones) did not give me the results I desired at all. I did some research and found Fuse Master enamels that claimed to have almost the transparency of stained glass sheet and their sample pictures showed the vibrant colors I wanted. I ordered two and did some test pieces:

When I do a test chip for a new paint, I try it spread thin, and applied thickly to try and get a feel for the range of possibilities. They do turn out quite transparent; I couldn't get a pleasing picture of the heavy green test with my phone camera, but held up to the light it was comparable to a dark green piece of glass. The blue picture here shows it well (I used a bit of waste cloth/aida to get a pattern for demonstration, placed below the chips. Just know that the green at full-color is more transparent than this picture lets out).

I mixed these colors with Fuse Master's recommended "Water based medium" for painting, because I wanted to eliminate as many variables as possible. Oddly the ingredients list alcohol, and when I used the "few drops" suggested, it had almost no grip whatsoever. In the future I may try this with gum arabic, and I have an unfired test chip of the colors on opaque glass.

I started with the green half, for no particular reason, and applied the paint and blended with my badger blender. Then I began scratching out the clear and blue areas. I fired two layers of green, trying to build up to the emerald tone I was looking for. I switched to blue at one point, and simultaneously realized I could likely get sharper lines by using a mask to block out the design. So I did... mid piece.

Two layers of green enamel, just before I laid out the blue.

Lifting the mask from under the blue enamel

Unfortunately I realized one problem too late: the lines on the green portion are less clean, and the rays of the mullet (star) are shorter on that end. I scratched them out by slowly easing out to the edges of the shape and looking for the tracing template beneath the glass. It caused some inexact shapes. The rays created with the mask (which was copied directly off the template) were sharper and longer (more exact to the pattern) but thus different. The differences are a bit more apparent in some pictures. This is the piece going in for a firing:

You can see that the blue-side rays are stronger than the green side's. Here is another shot, while I was cleaning up the blue enamel before firing:

I worked on the laurel wreath at this point. I took the original image Estelle liked and tweaked it so that the cut lines would be evenly on the 45 degree marks. The original had an irregular spacing I don't care for. Here are the leaves painted, before firing:

The one on the right hasn't been cleaned up yet.

I'm still working on good brush technique, but after awhile I got a groove while painting these leaves. I was pretty pleased with how the lines were taking the exact form I wanted, the paint was mixed right where I wanted it. And once I had applied mat paint and begun shading:

The central roundel had three coats of green, and two coats of blue. I don't know if the blue is stronger naturally, or if I had just applied it heavier, but I didn't feel the need to try for more layers of it.

I noticed that the template gave me some grief while blending. The paint could pool a little more right alongside the template, and various variations on blending didn't alleviate that. In a high quality picture or in person you can see a slightly darker outline right along the edge of the mullet/star's rays on the blue side. I came to two realizations; I need larger palettes to get my paint mixed appropriately, and I should try and use a stencil (a suggestion from Molly)

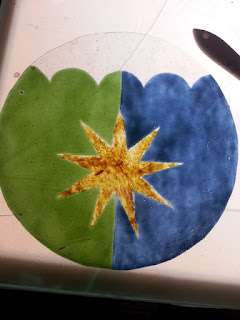

The 3-green and 2-blue piece. I noticed that the enamels appear significantly darker against the opaque stone than when back-lit, prompting me to prepare test chips on opaque glass. I suspect that will give a richer color with fewer layers/firings. Update to follow.

I used my typical silver stain, fired to 1000 as usual. I had washed my other silver stain-only badger blender to improve its performance. I blended the stain but I thought at the time it wasn't as even as I liked. I wasn't sure if I used too little oil (my preferred stain medium) or my blending was poor. Either way, the results were shocking on two fronts:

Firing the piece to 1000 yielded a green that was blotchier than before (the green looked fairly regular), olive, and almost opaque. I was very unpleasantly surprised. I was also unhappy with the uneven stain. I decided to add more stain to try and balance it out, but was unsure about the green enamel. The blue didn't react poorly. I suspected that the green did not like the lower firing, but I didn't expect it to change. Firing it back up to 1250 (This brand of enamels indicate they can be used anywhere above a given range, and may be used while slumping etc, so I used my normal vitreous paint program) would overfire the silver stain, but might fix the green. I decided I would rather have overfired silver stain than keep the green, which I considered a totally unrecoverable mistake.

I was right on both accounts. I couldn't fix the uneven staining with more stain, and over firing it did exactly what was expected and created a darker stain and the characteristic mother-of -pearl scum. It's only visible in reflected light, so once the panel is in her window hopefully it's not as noticeable. Someone has suggested they will hold the scroll up in Midrealm court during Pennsic--the thought is mildly horrifying :)

I had a good talk with my Laurel about how to install the glass into the frame, as I didn't have the framing buttons that came with the oak frame. I settled on caulk (which was handy as I later needed to repair a trailer mirror for a friend and used it again).

After I handed it to Estelle, she pointed out I had caulked it into the frame backwards. *SIGH*. Fortunately an easy fix.

The completed scroll. Click for super-big picture.

Lessons Learned

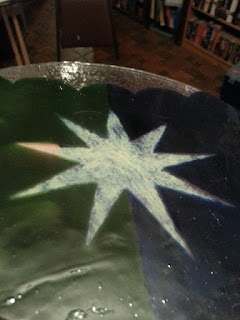

The haze. It's not purple.

  • A mask creates beautiful results, but needs to be used from the beginning for consistency.
  • Molly suggested that I try and use a stencil instead of a mask (covering the opposite portion). That hadn't occurred to me, but is worth a try! That would enable me to blend evenly and avoid the "dark halo" the mask caused.
  • Don't skimp on paint or stain and blend gently trying to conserve it.  Slather it on and blend it like a daiquiri that owes you money.
  • Center painted borders a bit better (that is, double-check the design you are copying :) )
  • Multiple firings might be changing the shape of the glass. Discuss with others...
  • Watch carefully when you are clearing away matted paint/enamel. I've never noticed this problem before, so I wonder if it might be tied to enamels/this brand of enamels/this brand of enamels' weird alcohol-containing "water-based medium" but after clearing it away there was a haze of it left behind. I caught it via reflected light at one point, and had to get Q-tips and start really cleaning the glass for fear it would fire in and be visible. If you look closely you can see it in this picture, near the top
  • A thought I had after is that, since the enamels say they mature somewhere around "1075-1150+" (I find it odd to give a range, and then 'or higher but...') with more time I could have tested firing the stain and enamel to a lower temperature that might not have treated the stain so badly, but which would have still given translucent enamel.
  • As if I needed another reminder, you can't use a poor cut-line think "I can just make it work" because then you recut the project :)

Friday, July 31, 2015

... and back again?

It's been 8 months since I've posted to my blog. Unfortunately some personal badness happened and I found myself generally unable to cut glass for that time.

Quite some time ago a dear friend told me that if she were elevated, she wanted me to do her scroll in glass. This is a big order, considering she would be elevated undoubtedly for C&I, and her impressive array of peerage scrolls. When you are being elevated, she is one of the elite you wish to do your scroll. For her to ask me was panic-inducing, but she explained that she deals with scrolls all the time; she wants something to go in her window instead :)

A few months ago she was put on vigil, to be elevated at Pennsic. That's a nasty wake-up call to clean my lightbox.

She asked for a scroll and a platter. I've provided a scroll and three (and a half) platters. There was a tremendous amount of learning from these projects, documented in the posts that follow.

Fortunately, and as I suspected, working on these has jostled me back to a bit of normalcy. Recently, as well, a friend who maintains a blog about artists and the artistic process decided to interview me. It's readable online here. I'm writing this post from GenCon in the middle of Pennsic. The posts should be up by the 10th, but there are a LOT of photos and ground to cover.

We had a very successful glass track day Thursday of last week. We originally planned to teach a "sheet to shiny" course for 4-6 people. It turned out to be 16! We got it done. Molly and I are badasses when our forces are combined, with gratitude toward Rois for additional supervision duties and Irene for being there in case needed. Next Thursday (Yes, I leave GenCon to go BACK to Pennsic) we teach 7 AM glass cutting again.
